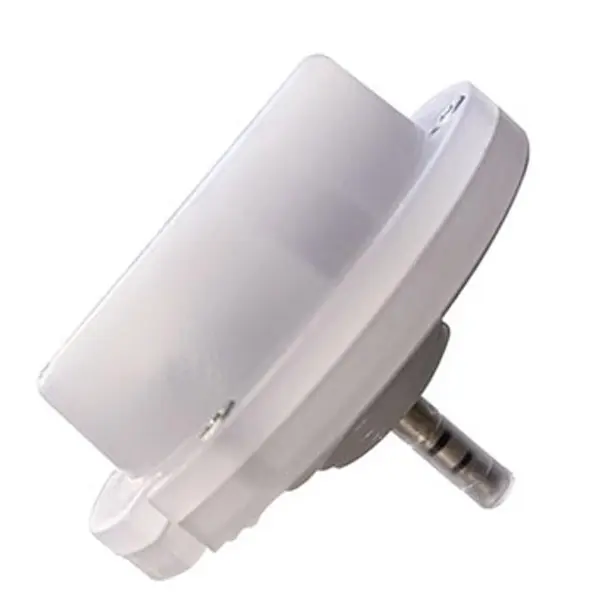

LED UFO & Flood Fixture Accessory
Motion & Photocell Microwave Sensor

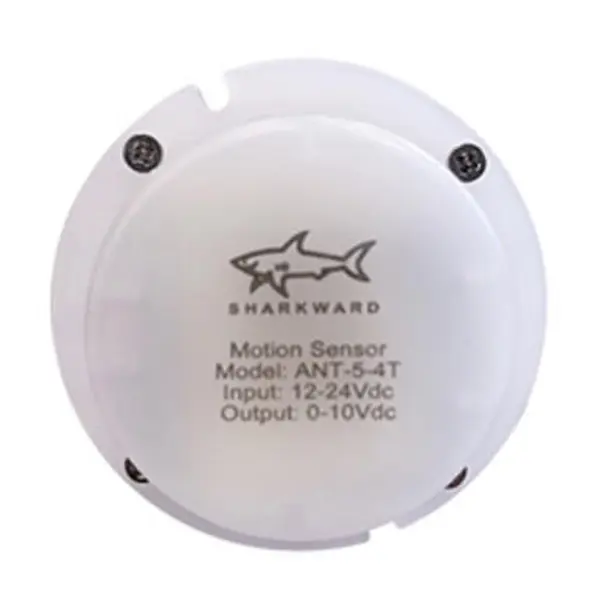

ANT-5-4T

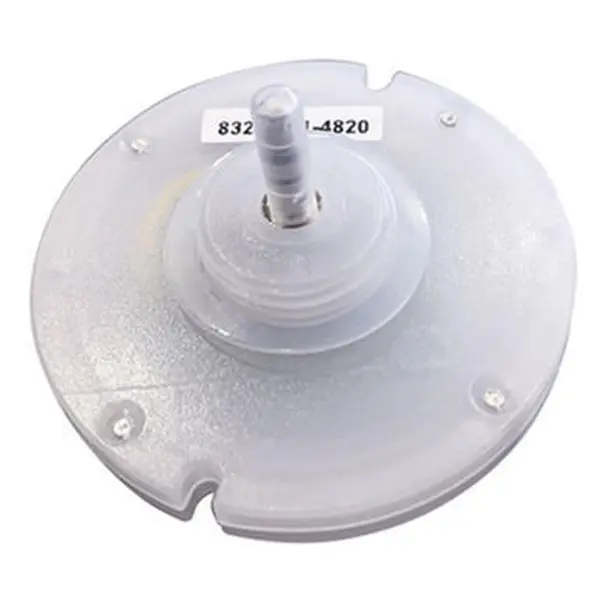

• 3.5mm Plug-in / Threaded Connection - Easily Installs into Receptacle of Select Commercial LED UFO & Flood Fixtures
• Adjustable Settings with RC-100 Remote Control
• Power Supply: 12-24V DC, >50mA
• Dim Control Output: 0-10V, max. 25mA sinking current
• Mounting Height: Up to 40ft (12m)
• Detection Radius: 20%/50%/75%/100%(1-8m)
• Time Settings: 10s/1min/5min/10min/15min/20min/30min/60min
• Light Control: 24H/10LUX/30LUX/50LUX
• Operating Temperature: -40°C to 70°C
• IP Rating: IP65
• Instructions & Specification Sheet
