LED Linear High Bay Fixture Accessory

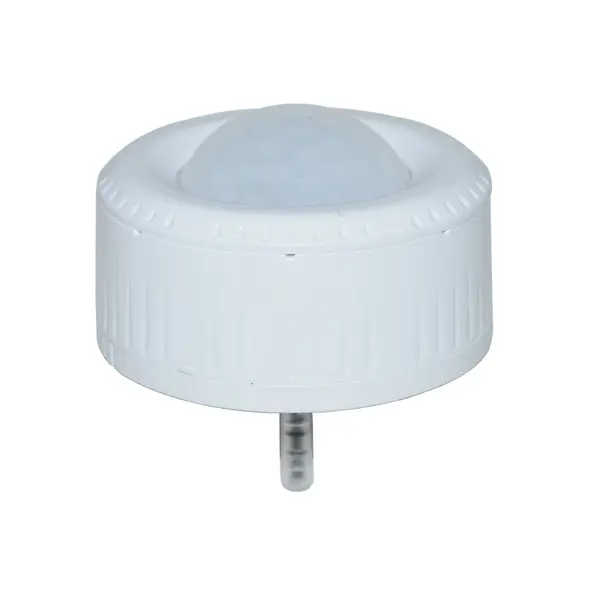

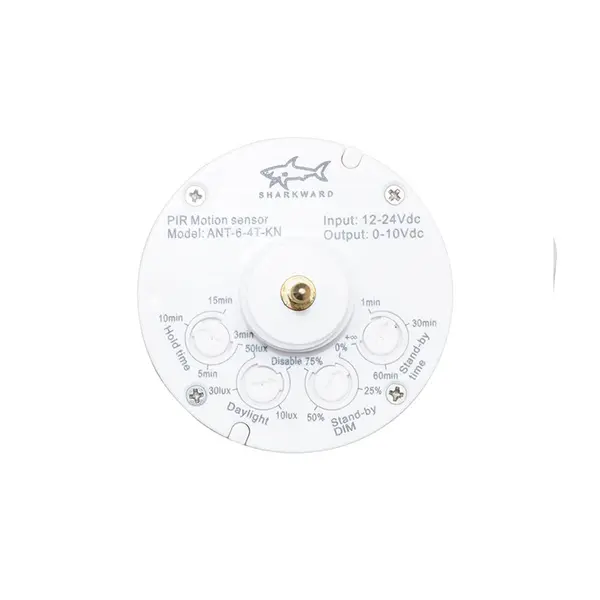

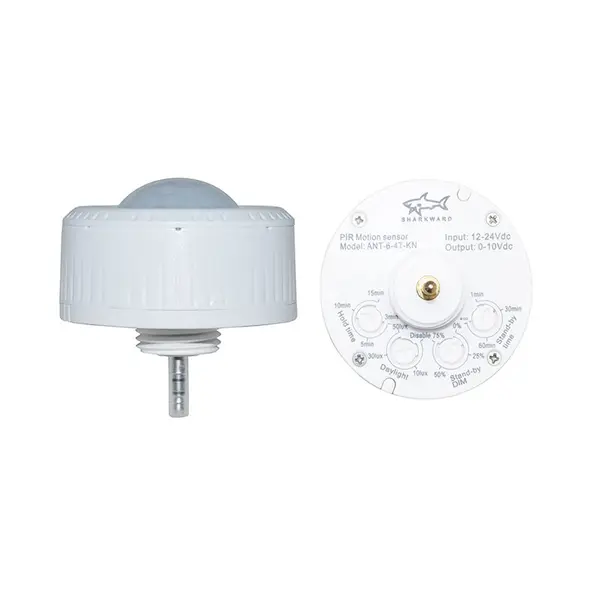

Motion & Photocell Microwave Sensor
ANT-6-4T-KN

• 3.5mm Plug-in / Threaded Connection - Easily Installs into Receptacle of Select Commercial LED Linear High Bay Fixtures
• Adjustable Settings with RC-100 Remote Control
• Power Supply: 12-24V DC, >30mA
• Dim Control Output: 0-10V, max. 25mA sinking current
• Mounting Height: Up to 40ft (12m)
• Detection Radius: 20%/50%/75%/100%(1-8m)
• Hold Time: 3min/5min/10min/15min
• Operating Temperature: -20°C to 60°C
• IP Rating: IP65
• Instructions & Specification Sheet
