Retrofit / Bypass Mode LED Tube (Type B)
CLT97-42WT8-50K-8FT-B

• Double Ended Wiring
• Existing Fixture is Wired to Bypass the Ballast

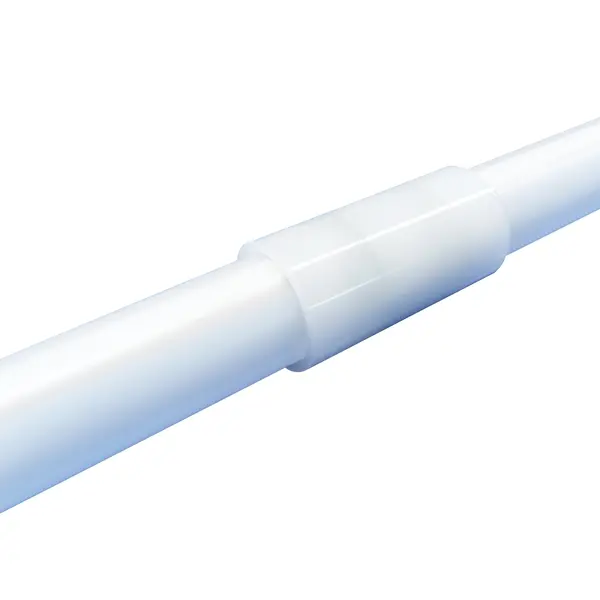

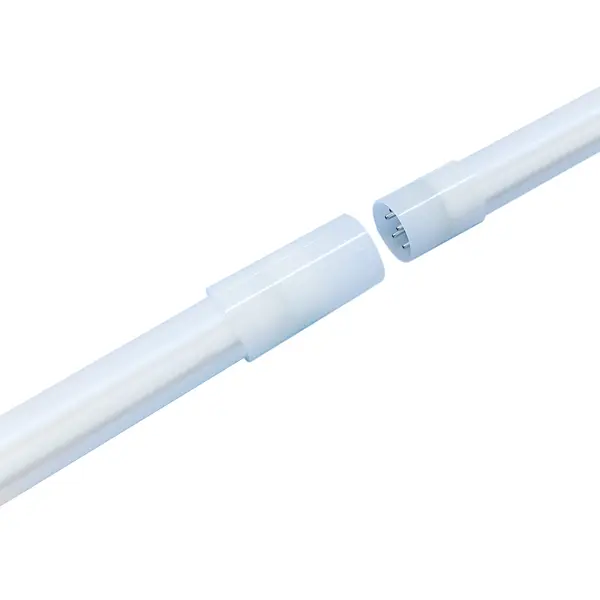

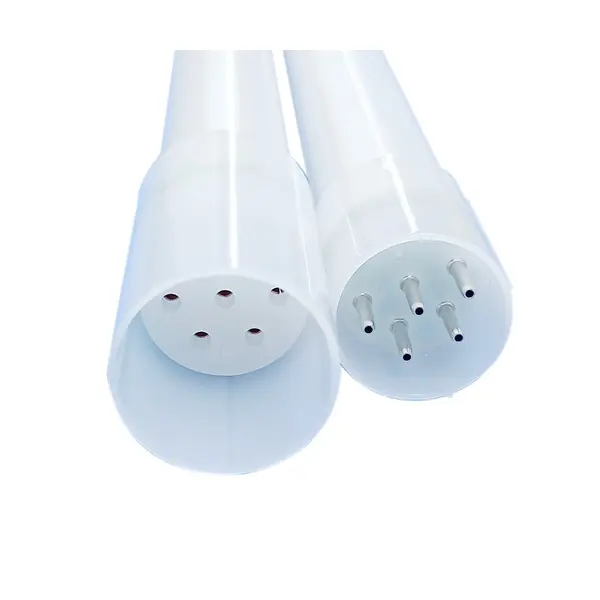

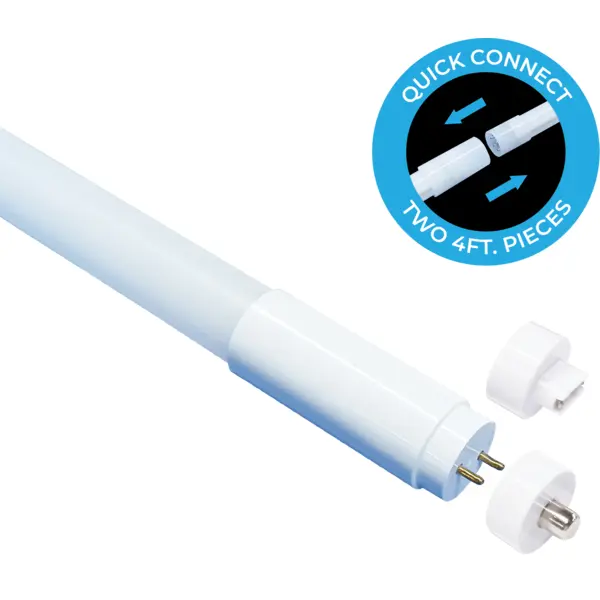

• 2-Piece LED Tube Combine to Make a Single 8FT Tube
• Film Coated Shatter Resistant Glass Tube
• Frosted
• Built-in Universal Voltage Driver AC 120-277V
• PF > 0.9
• CRI > 80
• 0-10V Dimming Capable with CLT97-100WDIM Dimming Module
• 200° Beam Angle

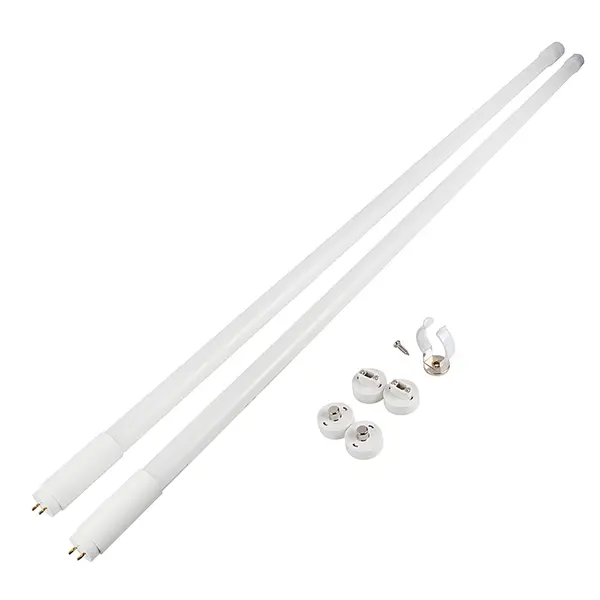

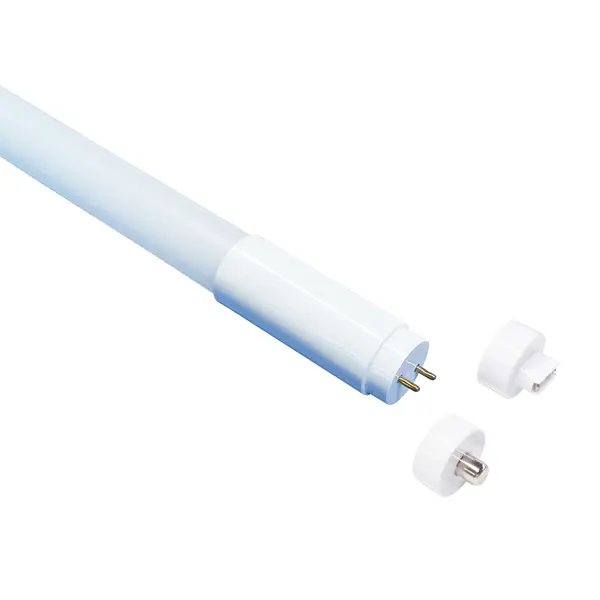

• Includes Removable Recessed Double Contact (R17d) and Single-Pin (Fa8) Mounting End Caps

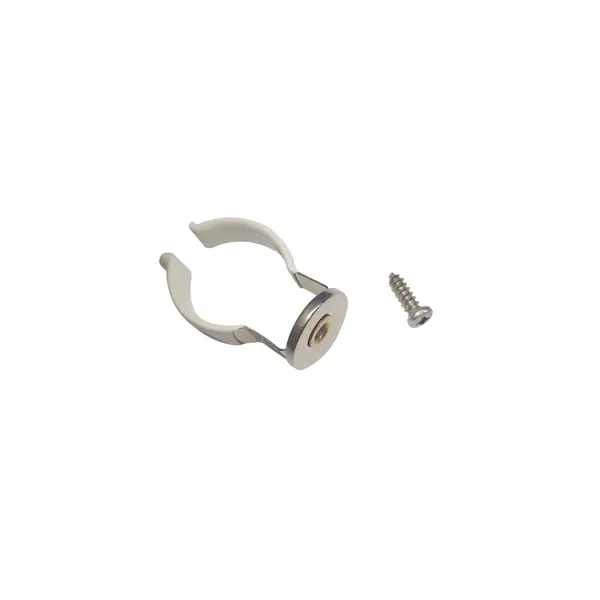

• Includes U-Clip Holder Bracket
• NSF Certified
• DLC Listed
• UL Listed
• 50,0000 Hour Lifetime Rating
• 5-Year Warranty
• Operational Temperature Range: -4°F to 113°F (-20°C to 45°C)
• Specification Sheet

Specifications

Wattage:

42

Lumens:

5700

Color Temperature:

5000

CRI:

80+

Length:

96.0 in.

Base:

G13, Medium Bi-Pin

Beam Angle:

200°

Voltage:

120-277

Manufacturer:

Commercial LED

Model Number:

CLT97-42WT8-50K-8FT-B

Lifetime:

50,000 Hours

Origin:

CHN

Notes:

R17d Adapters Included, Fa8 Adapters Included
